Description

Our stylish t bar pull handles have a modern, simplistic design and are perfect for use on entrance doors.

• Manufactured from marine grade 316 stainless steel, these pull handles offer unrivalled corrosion resistance.
• This bolt fix option allows the pull handle to be bolted through from the inside of your door.
• Maximum door thickness: 80mm
• Available in five different sizes.
• Supplied with matching SS bolts.

Dimensions

Overall Length: 600mm
Diameter: 32mm
Fixing Centre: 400mm
Projection: 80mm

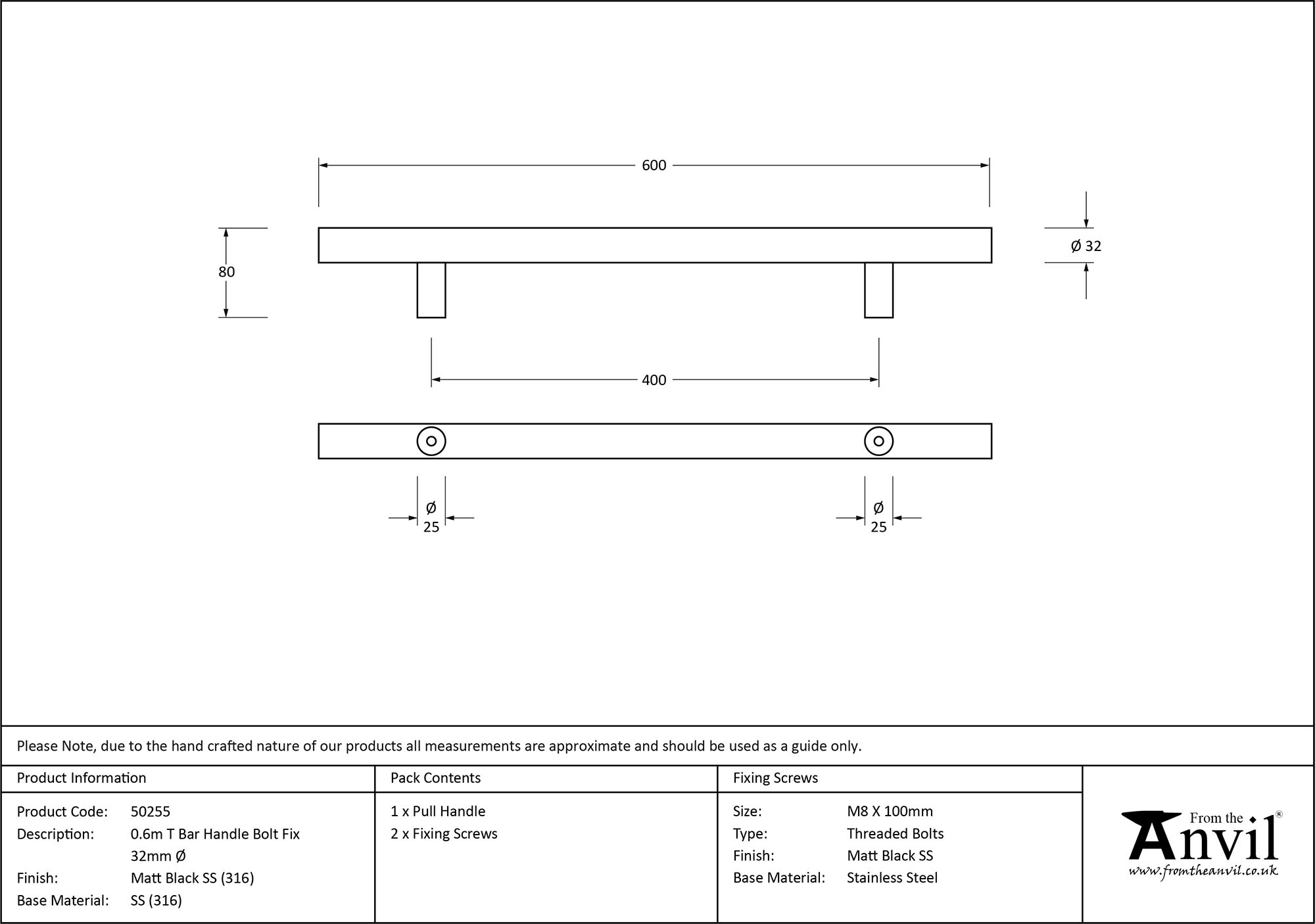

Technical Drawing

Finish

Manufactured from marine grade 316 stainless steel with a durable powder coating, our Matt Black SS products offer unrivalled corrosion resistance, making them an excellent choice for coastal locations. Matt Black is an extremely versatile finish; Naturally, it looks great when used in ultra-modern settings, but can also be used to add a touch of sophistication and refinement to traditional interiors.

Care & Maintenance

Regular oiling of all moving parts using our ‘3-in-1 Oil’ (92337) is beneficial to the longevity of your products. This process is also highly recommended during initial installation. An oily cloth can also be used to wipe over the product from time to time to aid protection against exterior or environmental elements. This can also be done from installation. For any minor scratches that may occur with general wear and tear of your product, we offer a durable ‘Black Touch Up Paint’ (73101) if required.
