Avon Espag
Description
The simple, four-sided design of our Avon collection is created by hand with a series of hammer blows, and is well-suited to contemporary and traditional settings alike.
- Due to their slim fixing plates, these espagnolettes can be fitted on any type of window including uPVC and timber. Designed to match the products in our Avon range.
- For ease of use, the handle is cranked forwards, ensuring it protrudes a moderate distance from the window.
- The reversible design of this product makes it suitable for both left and right-handed windows.
- They have a 7mm² x 40mm spindle and can be locked by way of a grub screw.
- Suitable for use with an espagnolette gearbox and window lock.
- Supplied with matching SS M5 screws.
Dimensions
Handle Length 132mm
Fixing Plate Size: 68mm x 16mm x 6mm
Centres: 43mm

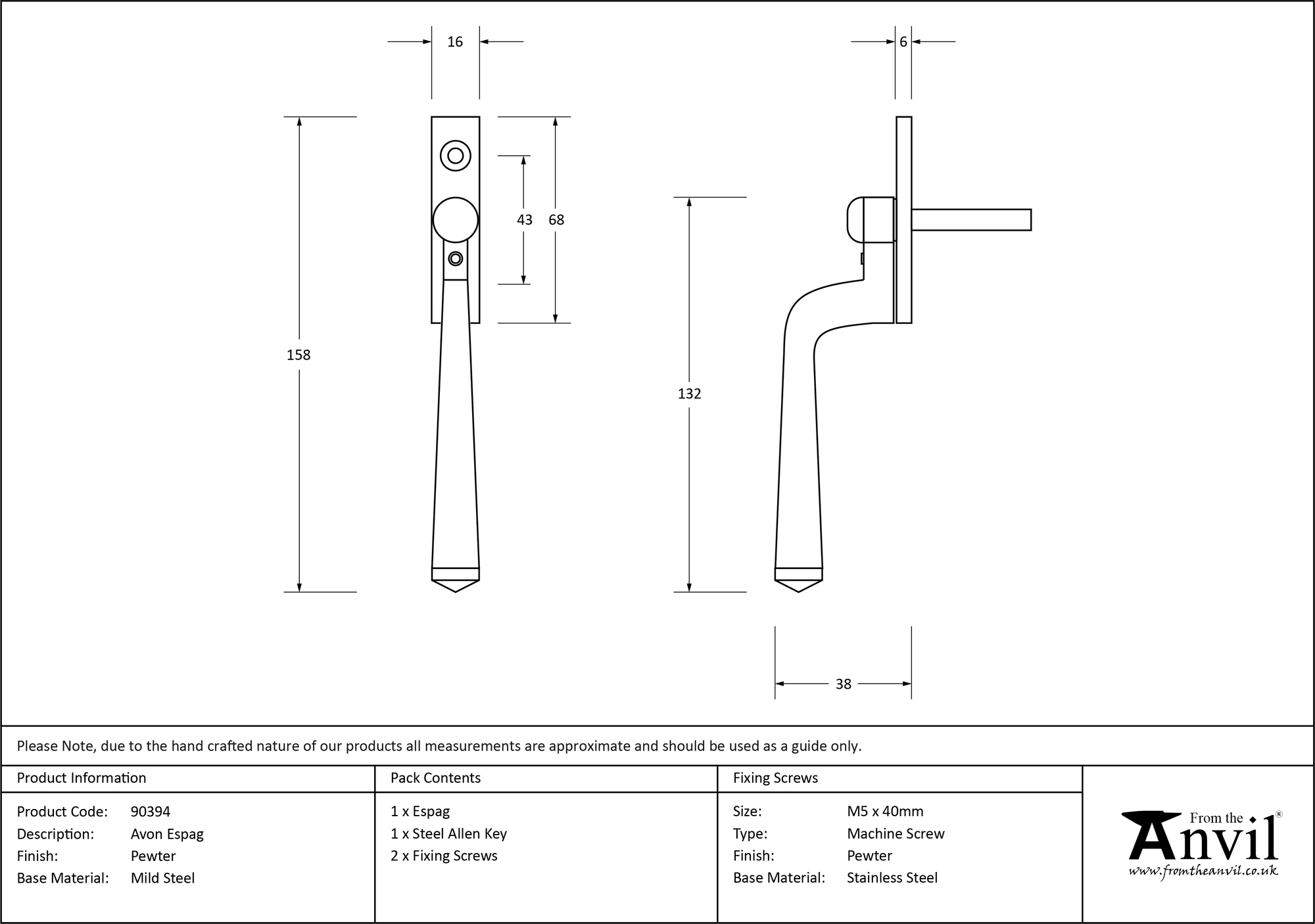

Technical Drawing
Finish
This charming finish is well suited to characterful homes and interiors, where a more refined, yet traditional look is desired. Pewter Patina products work beautifully when used with natural timbers and oak, but can also be modernised by pairing them with painted finishes in a variety of colours.
Hand forged from a durable base of steel, out Pewter Patina finish is an excellent example of how our unique manufacturing techniques add further detail to the natural charm of the base material. Pewter Patina products undergo an accelerated ageing process, creating a dark patina before being placed into barrelling machines, giving them the unique finish. During the final stages of manufacturing, a high quality, cleat matt lacquer is applied for protection. A low maintenance finish, ideal for use in kitchens and bathrooms, or externally where damp conditions are expected.
Click to learn more about this Finish.
Care & Maintenance
A low maintenance finish, ideal for use in kitchens and bathrooms, or externally where damp conditions are expected.
An oily cloth can be used to wipe over the finish from time to time to remove any harmful deposits that build up on the surface of your product, this will also aid protection against any environmental elements.
To increase the mechanical life expectancy of your products, we recommend regular oiling of all moving parts using our ‘3-in-1 Oil’ (92337). This process is also highly recommended during initial installation.
