T Bar Handle Bolt Fix 32mm dia
Description
Our stylish t bar pull handles have a modern, simplistic design and are perfect for use on entrance doors.
- Manufactured from marine grade 316 stainless steel, these pull handles offer unrivalled corrosion resistance.
- This bolt fix option allows the pull handle to be bolted through from the inside of your door.
- Maximum door thickness: 80mm
- Available in five different sizes.
- Supplied with matching SS bolts.
Dimensions
Diameter: 32mm
Fixing Centre: 400mm
Projection: 80mm

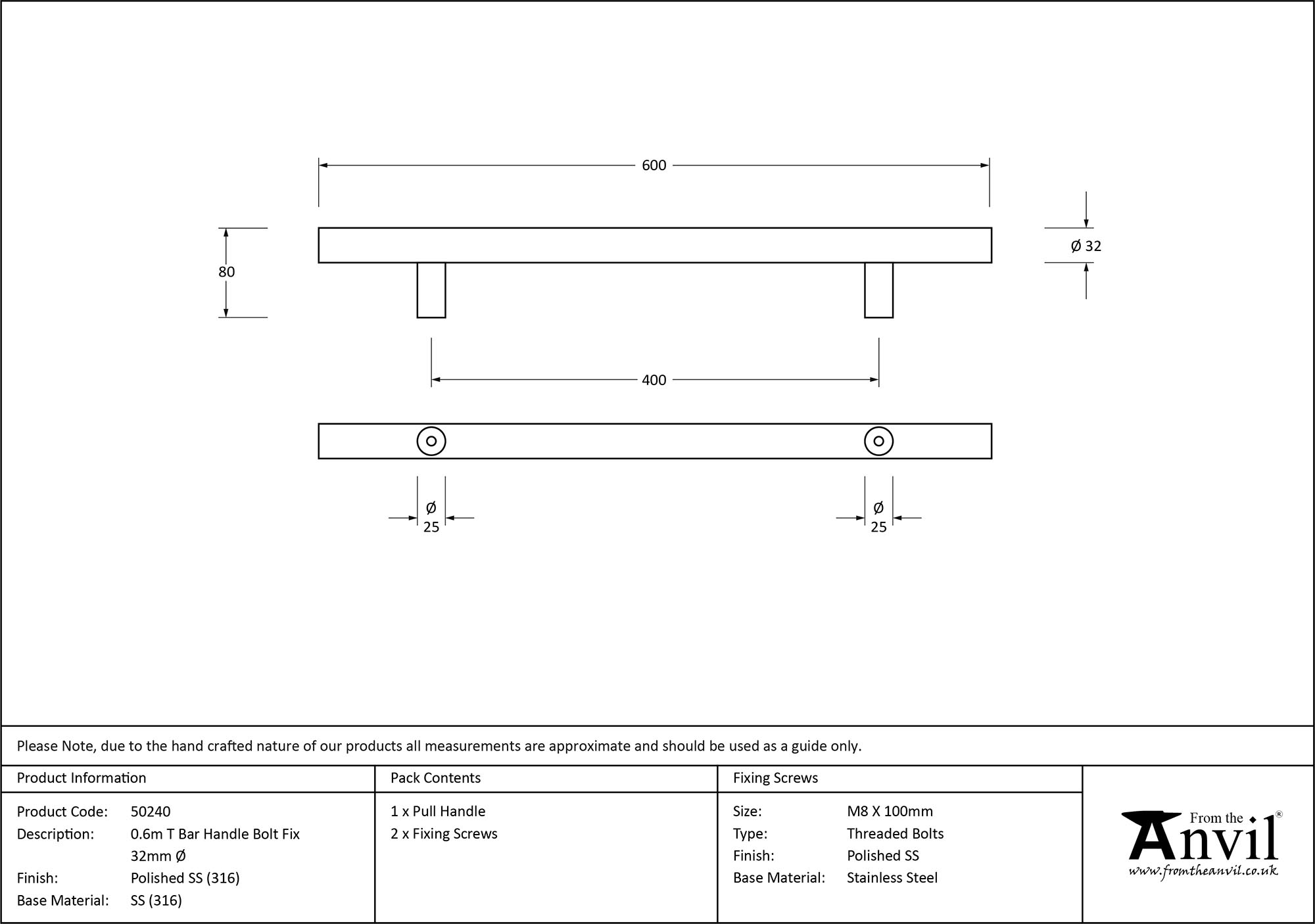

Technical Drawing
Finish
Our Polished Marine 316 Stainless Steel is a bright, high sheen, finish well suited to a range of architectural styles. A versatile choice that looks especially striking when used against dark and dramatic hues, but also works when paired with a range of more subtle colours for a classic look.
Manufactured with high concentrations of chromium and nickel, our Satin Marine Stainless Steel is grade 316 and offers extremely resilient, corrosion resistant properties, exceeding 1,000+ hours salt testing. This finish is an excellent choice for coastal locations and highly polluted environments.
Click to learn more about this Finish.
Care & Maintenance
An extremely hardwearing finish which offers exceptional protection against corrosion. Having surpassed 1,000+ hours salt testing, it's an excellent choice for use in salt rich, or heavily polluted environments.
Despite the natural durability of this finish, we would still recommend washing your product using a soft, clean cloth and mild soapy water from time-to-time to reduce unnecessary pollutants building up on the products surface. Please ensure all products are dried immediately with a clean, soft cloth after any cleaning.
Over time, stainless steel can appear to tarnish. This is due to surface particulate deposits rather than the stainless steel itself. Specialist stainless steel cleaning products such as our 'Stainless Steel Cleaner Kit' (33030) are available to remove tarnishing and nylon abrasive pads can aid in their use, being careful to use them in the direction of the grain.
Carbon steel wool is reactive and should never be used on stainless steel.
To increase the mechanical life expectancy of your products, we recommend regular oiling of all moving parts using our ‘3-in-1 Oil’ (92337). This process is also highly recommended during initial installation.
Click for more Care & Maintenance advice.
