BZP Winkhaus AV2 Heritage Lock

Description

For replacement period doors and prestige new build doors.

• The euro profile locking cylinder of AV2 Heritage is located at a similar height to a traditional round cylinder pull but provides instant higher security as the lock is operated automatically as soon as the door is closed.
• Simply operated with a euro profile thumbturn cylinder which is located at approximately ⅔ of the door height to replicate the rim locking night latch found on traditional doors.
• An external lever handle is not required to operate the locking points and the lock can be deadlocked or opened externally by turning the key a quarter of a turn.
• The door is automatically locked when closed from the inside. The key is required to gain entry from the outside.

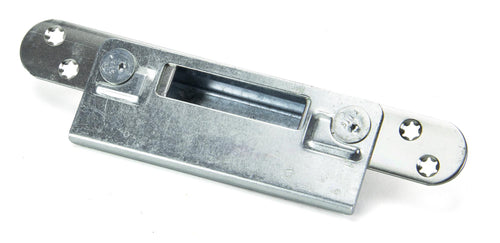

• Automatic locking on closing the door with 2 solid anti-pushback hooks which fully penetrate the steel keeps, helping to prevent forcing apart of the door and frame.
• Please note that 1x euro profile thumbturn cylinder needs to be purchased separately.

Dimensions

Overall Height: 1770mm
Centre Case Size: 63mm (D) x 186mm (H) x 15mm (T)
Hook Lock Box Size: 45mm (D) x 113mm (H) x 15mm (T)
Backset: 45mm

Technical Drawing

Finish

BZP, or Bright Zinc Plated, products are made from steel and plated with a thin layer of zinc using an electric current, to protect against rusting and oxidisation.
